Measuring devices for leak detection and calculation
Around 10% of total industrial electricity consumption is used for compressed air generation in industrialized countries, and in Germany the figure is as high as 14%. Leakages are the main factor for energy losses and most compressed air systems show losses in the range of about 20 % to 40 %, in bad systems even more than 60%. Fixing compressed air leaks is the most effective action for reducing the energy consumption. Compressed air leaks often waste energy 8760 hours (24 h x 365 d) a year and increase compressor run times, which also shortens maintenance intervals. Therefore, it is a must to detect and eliminate leakages frequently. Our LD-Series will give you all the function needed to detect leakages and measure the consequences in terms of energy consumption and wasted money.

Typical applications of our measuring instruments in this section are leakage detection in compressed air systems and leak testing of unpressurized systems.

CS INSTRUMENTS LeakCam 600 leak detector for all relevant leakages at a glance.
LeakCam 600 – all relevant leakages at a glance
Detects multiple leakages simultaneously with globally unique Power Beam Forming. 4th generation technology – also suitable for other gases. Helps to locate and repair leaks – including cost estimation and ISO 50001 documentation.

Visualizes leakages on the integrated screen and save time
Ultrasound Camera UltraCam LD 500/510
uses 30 MEMS microphones for the Calculation and visualisation of the ultrasound image. The device also makes inaudible ultrasound audible.

LD 500 – Leak detector for leak calculation
Leak detector with camera LD 500/510
Create an ISO 50001 report with leak detector LD 500 with camera and leakage calculation (l/min and costs in €).

CS INSTRUMENTS Leak Detector LD 450 with headset
Leak detector LD 450
Leak detector for compressed air, gas and vacuum systems. Optionally as a single device or in a case set.

Leak Detector LD500R
Long-range ultrasonic leak detector. Specialised for all refrigerant gases and nitrogen tests.

Leak Detector LD450R
Long-range ultrasonic leak detector. Specialised for all refrigerant gases and nitrogen tests.

CS Leak Reporter Cloud solution – software for our leak detectors LD 500/510
CS Leak Reporter Cloud solution – for LD 500/510 and LC 600
The CS Leak Reporter Cloud Solution combines the functionalities of the CS Leak Reporter V2 with a browser-based cloud system.

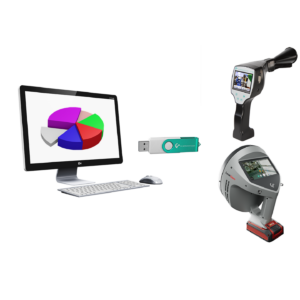

CS Leak Reporter V2 reporting software for LD 500/510 and LC 600.
CS Leak Reporter V2 – reporting software for LD 500/510 and LC 600
For detailed ISO 50001 reports. Gives an illustrated overview on the detected leaks and possible savings.
